45×63 Type – With Safety Pin – #05
Technical Parameter

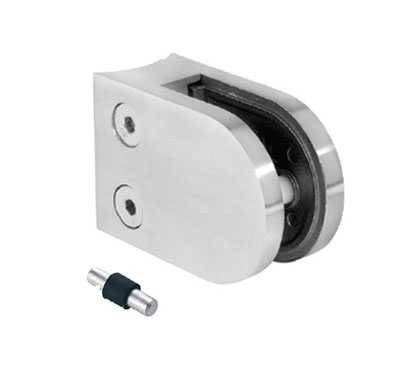

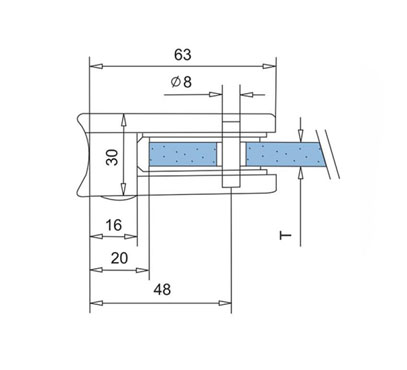

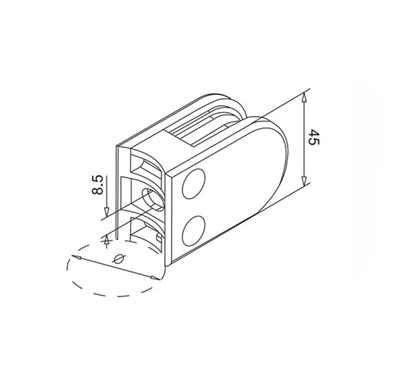

45×63 Round Glass Clamp/ Glass Clip/Glass Holder with Pin only
Material: AISI304, AISI316, Zamak, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | T(mm) | φ(mm) |
| B10500 | 8-12.76 | Flat |
| B10542 | 8-12.76 | 42.4 |
| B10548 | 8-12.76 | 48.3/50.8(2″) |
| G00808 | 8 | – |
| G00809 | 8.76 | – |
| G00810 | 10 | – |
| G00812 | 12 | – |
| G00813 | 12.76 | – |
