45×63 Type – With Safety Pin – #40A
Technical Parameter

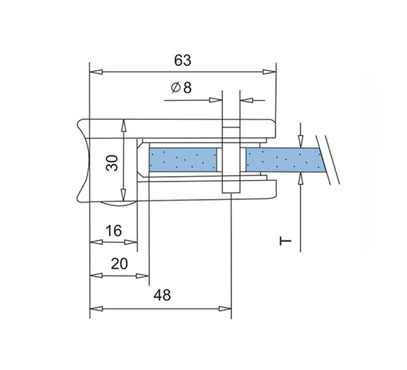

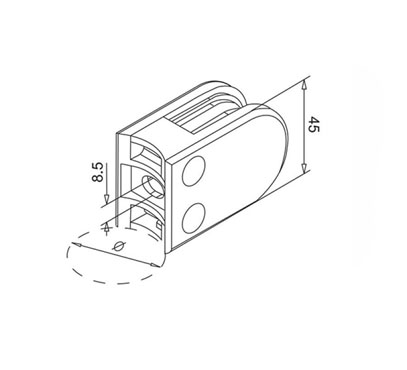

45×63 Round Glass Clamp/ Glass Clip/Glass Holder with Pin only
Material: AISI304, AISI316, Zamak, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | T(mm) | φ(mm) |
| B14000 | 8-12.76 | Flat |
| B14042 | 8-12.76 | 42.4 |
| Rubber | ||
| G00808 | 8 | – |
| G00809 | 8.76 | – |
| G00810 | 10 | – |
| G00812 | 12 | – |
| G00813 | 12.76 | – |
