55 Square – with safety pin and plate – #08C
Technical Parameter

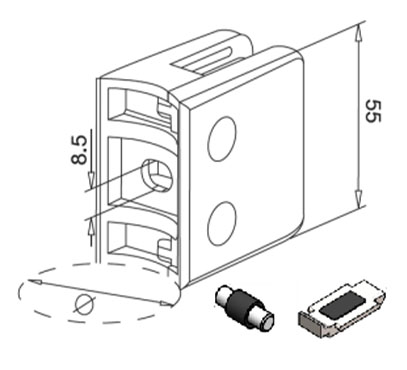

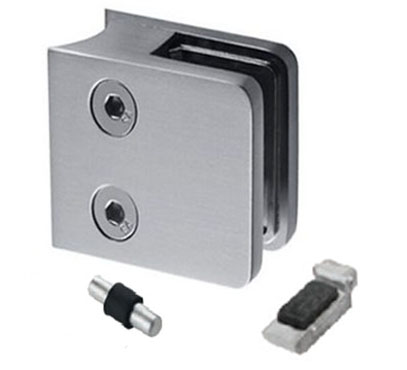

55*55 Square Glass Clamp /Glass Clip/Glass Holder with Pin and Plate
Material: AISI304, AISI316, Zamak, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD

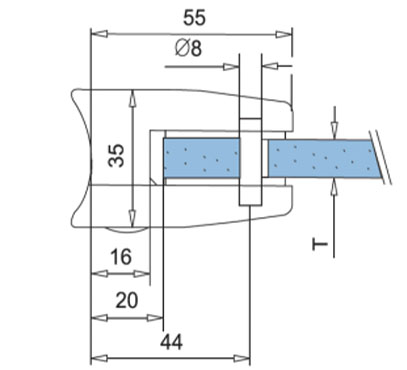

| Code | T(mm) | φ(mm) | W(mm) |
| B10800C | 8-12.76 | Flat | 35 |
| B10842C | 8-12.76 | 42.4 | 35 |
| B10848C | 8-12.76 | 48.3/50.8(2″) | 35 |
| Rubber | |||
| G01108 | 8 | – | – |
| G01109 | 8.76 | – | – |
| G01110 | 10 | – | – |
| G01112 | 12 | – | – |
| G01113 | 12.76 | – | – |
