55×65 – with safety pin and plate – #10C
Technical Parameter

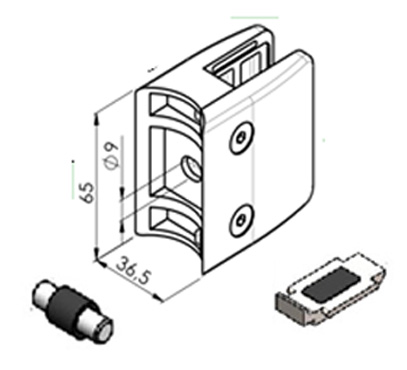

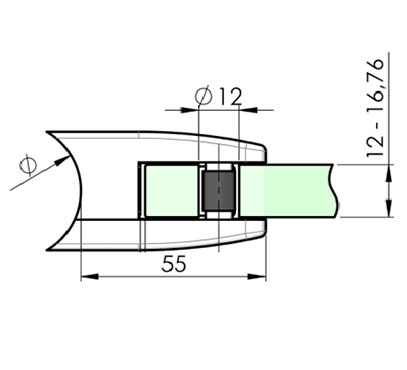

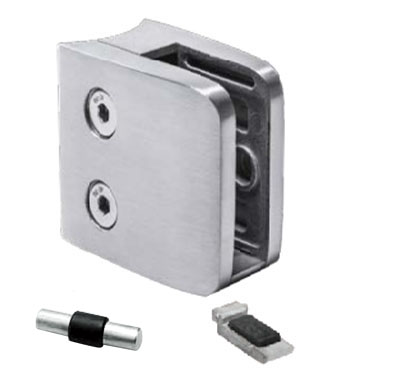

55*65 Square Glass Clamp /Glass Clip/Glass Holder with Pin and Plate.
Material: AISI304, AISI316, Zamak, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | T(mm) | φ(mm) | W(mm) |
| B11000C | 12-17.52 | Flat | 36.5 |
| B11042C | 12-17.52 | 42.4 | 36.5 |
| B11048C | 12-17.52 | 48.3/50.8(2″) | 36.5 |
| Rubber | |||
| G01312 | 12 | – | – |
| G01313 | 12.76 | – | – |
| G01317 | 16.76 | – | – |
| G01318 | 17.52 | – | – |
