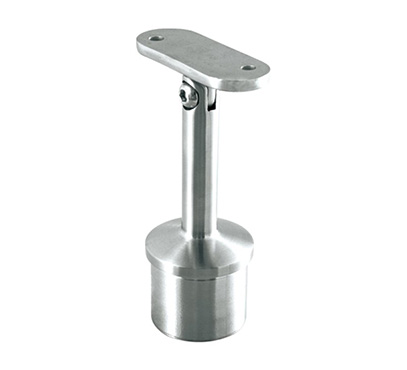

Adjustable Post Mount Handrail Support – Flat
Technical Parameter
Adjustable Post Railing Support with Flat Plate
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD

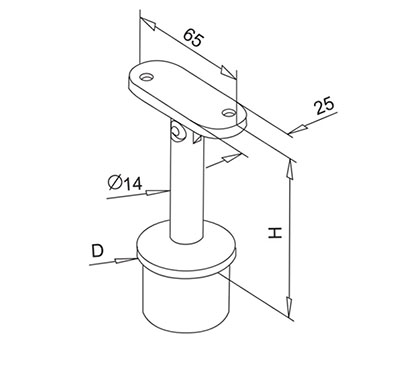

| Code | φ(mm) | H(mm) | D(mm) |
| A20134 | Flat | 80 | 33.7×2.0 |
| A20142 | Flat | 81 | 42.4×2.0 |
| A20148 | Flat | 82 | 48.3×2.0 |
| A20146 | Flat | 81 | 42.4×2.6 |
| A20136 | Flat | 82 | 48.3×2.6 |
