Adjustable Post Mount Handrail Support – Tube
Technical Parameter

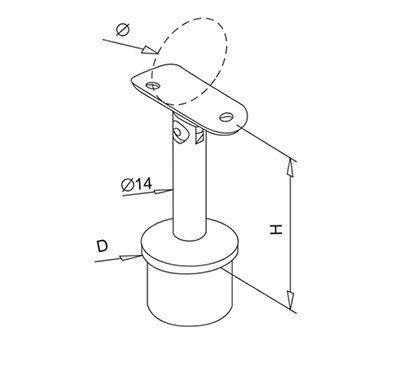

Adjustable Post Railing Support for Tube
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | φ(mm) | H(mm) | D(mm) |
| A20534 | 33.7 | 78 | 33.7×2.0 |
| A20642 | 42.4 | 79 | 42.4×2.0 |
| A20646 | 42.4 | 79 | 42.4×2.6 |
| A20748 | 48.3 | 80 | 48.3×2.0 |
| A20736 | 48.3 | 80 | 48.3×2.6 |
