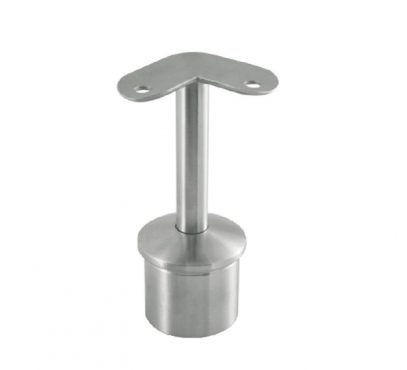

Post Mount Handrail Support – Tube 135 Degree
Technical Parameter
Railing Corner Saddle Support for Tube
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD

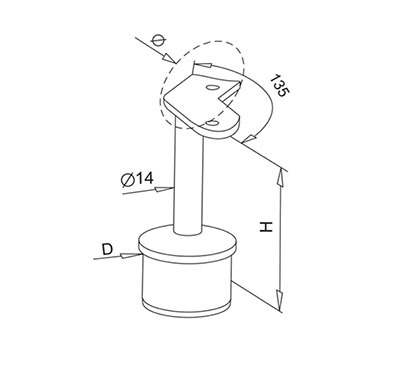

| Code | φ(mm) | H(mm) | D(mm) |
| A21134 | 33.7 | 78 | 33.7×2.0 |
| A21242 | 42.4 | 79 | 42.4×2.0 |
| A21246 | 48.3 | 80 | 48.3×2.0 |
| A21348 | 48.3 | 79 | 42.4×2.6 |
| A21336 | 48.3 | 80 | 48.3×2.6 |
