Adjustable Post Mount Handrail Support – Tube
Technical Parameter

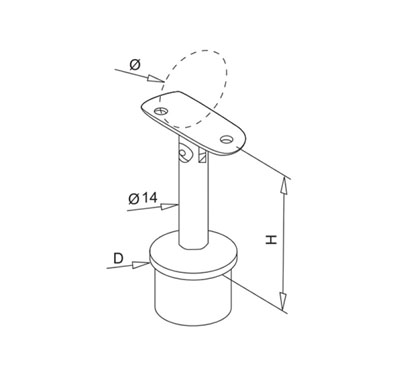

Adjustable Post Railing Support for Tube
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | φ(mm) | H(mm) | D(mm) |
| C53801 | 38.1 | 77 | 38.1×1.5 |
| C53802 | 38.1 | 77 | 50.8×1.5 |
| C55002 | 50.8 | 77 | 50.8×1.5 |
