Round Tube Post – Cable
Technical Parameter

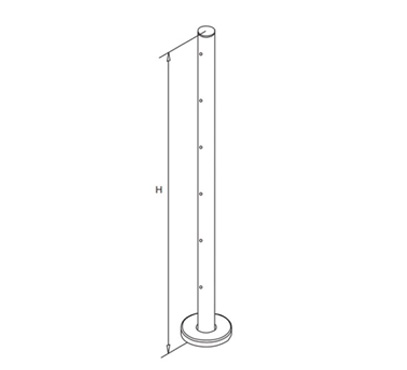

Round baluster/Fencing Post – Cable
Material: AISI304 or AISI316
Surface: Satin, Mirror or Powder Coating
|
Tube sizeφ (mm) |
Tube Wall (mm) |
Height (mm) |
Cable (mm) |
Position |
| 38.1 | 1.5 | 900-1200 | 3/4/5/6 | End/Middle/Corner |
| 42.4 | 2.0 | 900-1200 | 3/4/5/6 | End/Middle/Corner |
| 48.3 | 2.0 | 900-1200 | 3/4/5/6 | End/Middle/Corner |
| 50.8 | 1.5 | 900-1200 | 3/4/5/6 | End/Middle/Corner |
