Square – Square Cover Plate
Technical Parameter

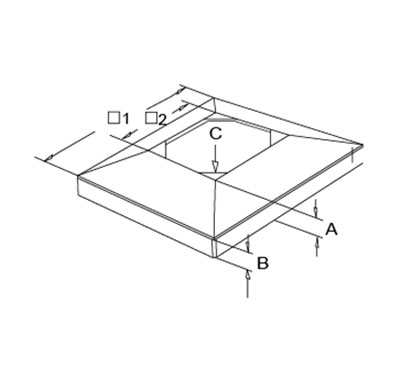

Square Flange Cover for Sqaure Polygon Tube
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | □1x□2xWall(mm) | A（mm） | B(mm） | C（mm） |
| A62446 | 100x46x1.5 | 25 | 10 | 5 |
| A62464 | 100x46x1.0 | 28 | 12 | 5 |
| A62448 | 100x48x1.5 | 26 | 10 | 10 |
| A62484 | 100x48x0.8 | 25 | 20 | 10 |
| A62450 | 100x50x1.5 | 26 | 10 | 8 |
