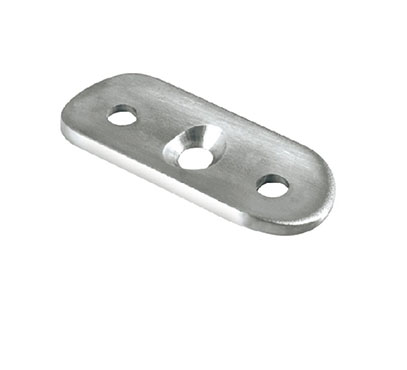

Support Plate With Straight Side Hole
Technical Parameter

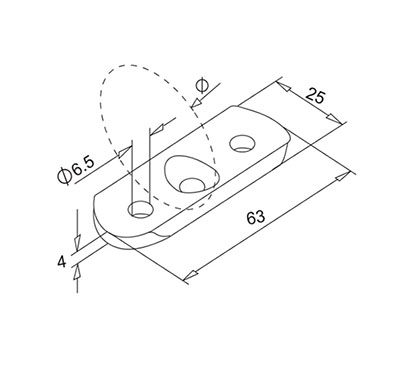

Saddle Plate for Post Railing Support with Straight Side Hole
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | φ(mm) | Size(mm) | For Bar(mm) |
| C41300 | Flat | 63x25x4 | 12 |
| C41334 | 33.7 | 63x25x4 | 12 |
| C41342 | 42.4 | 63x25x4 | 12 |
| C41348 | 48.3 | 63x25x4 | 12 |
| C41338 | 38.1(1-1/2″) | 63x25x4 | 12 |
| C41350 | 50.8(2″) | 63x25x4 | 12 |
| C41343 | 43.0 | 63x25x4 | 12 |
| C41400 | Flat | 63x25x4 | 14 |
| C41434 | 33.7 | 63x25x4 | 14 |
| C41442 | 42.4 | 63x25x4 | 14 |
| C41448 | 48.3 | 63x25x4 | 14 |
| C41438 | 38.1(1-1/2″) | 63x25x4 | 14 |
| C41450 | 50.8(2″) | 63x25x4 | 14 |
| C41443 | 43.0 | 63x25x4 | 14 |
