Support Plate With Straight Side Hole
Technical Parameter

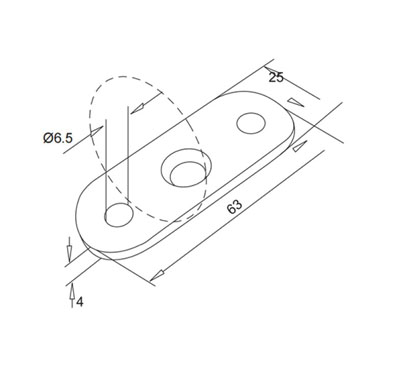

Saddle Plate for Post Railing Support with Straight Side Hole
Material: AISI304, AISI316, Duplex 2205
Surface: Satin, Mirror, Powder Coating, PVD
| Code | φ(mm) | Size(mm) | For Bar(mm) |
| C41100 | Flat | 63x25x4 | 12 |
| C41138 | 38.1(1-1/2″) | 63x25x4 | 12 |
| C41150 | 50.8(2″) | 63x25x4 | 12 |
| C41143 | 43.0 | 63x25x4 | 12 |
| C41200 | Flat | 63x25x4 | 14 |
| C41238 | 38.1(1-1/2″) | 63x25x4 | 14 |
| C41250 | 50.8(2″) | 63x25x4 | 14 |
| C41243 | 43.0 | 63x25x4 | 14 |
